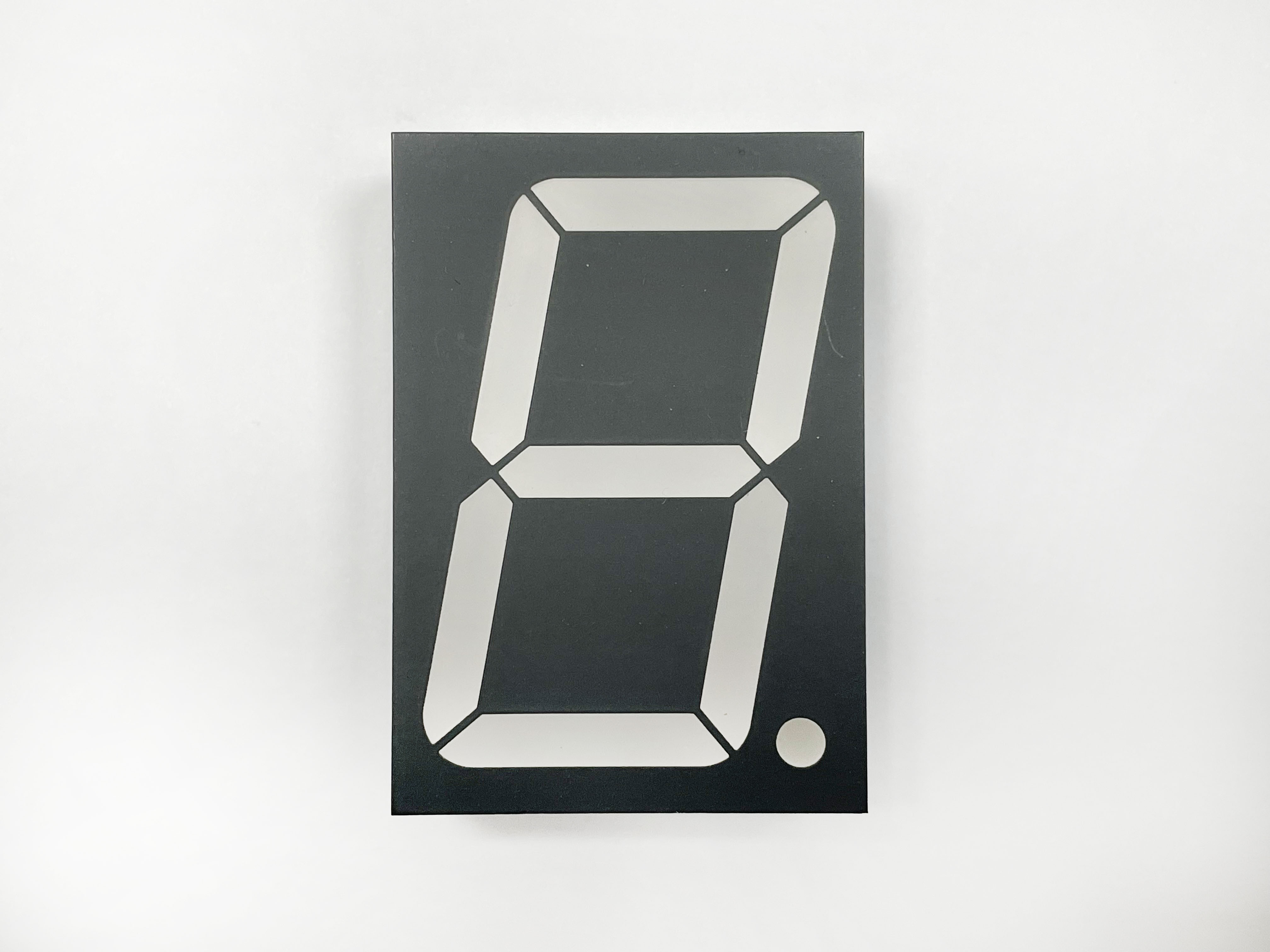

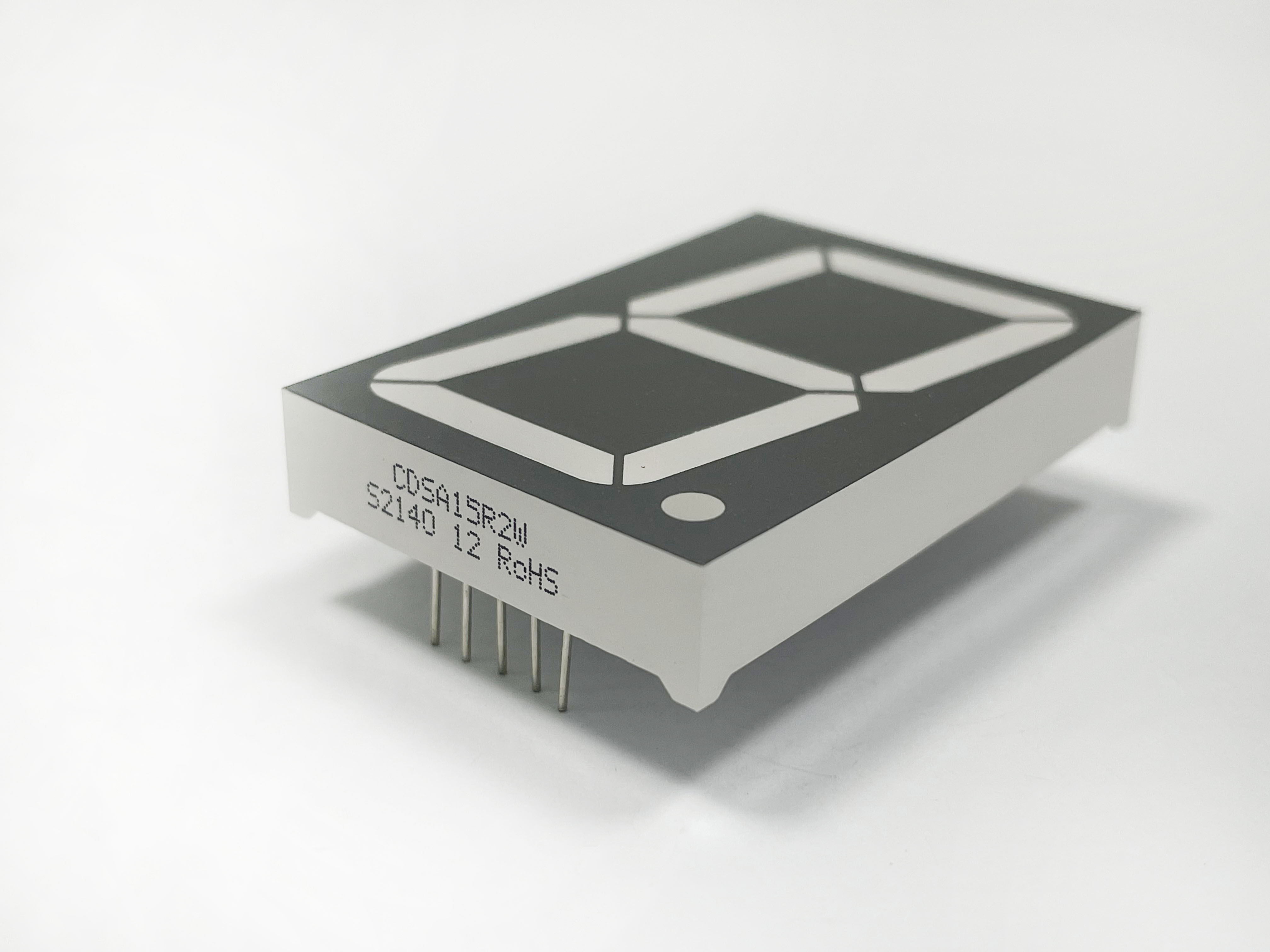

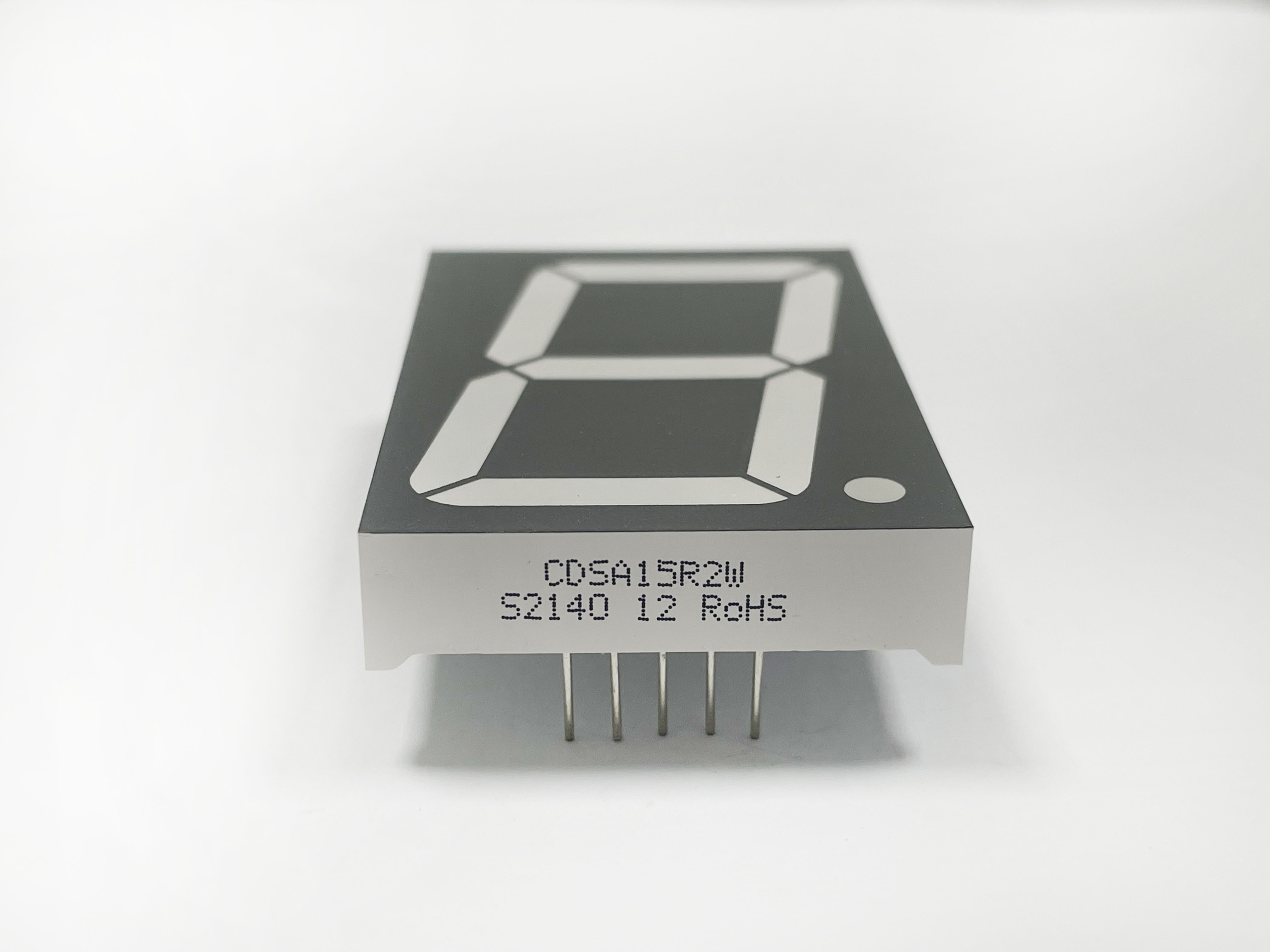

CSDS-1F100_CSDS-1F101
基本信息
1.Single digit display .
2.1.5 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
2.1.5 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
特色优点
产品规格
| Package | Outer Dimensions (mm) | Color | Part Number | Dominant Wavelength λd (nm) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | |||||
| 1.50 inch | 30.6*44*8 | Green | CSDS-1F1002 | CSDS-1F1012 | 525 | 300 | 800 | 10 |
| 1.50 inch | 30.6*44*8 | Green | CSDS-1F100M | CSDS-1F101M | 570 | 17 | 34 | 10 |
| 1.50 inch | 30.6*44*8 | Yellow | CSDS-1F100T | CSDS-1F101T | 590 | 70 | 150 | 10 |
| 1.50 inch | 30.6*44*8 | Orange | CSDS-1F100A | CSDS-1F101A | 605 | 70 | 160 | 10 |
| 1.50 inch | 30.6*44*8 | Red | CSDS-1F100V | CSDS-1F101V | 625 | 60 | 120 | 10 |
| 1.50 inch | 30.6*44*8 | Red | CSDS-1F100L | CSDS-1F101L | 630 | 60 | 110 | 10 |
| 1.50 inch | 30.6*44*8 | Red | CSDS-1F100U | CSDS-1F101U | 645 | 30 | 50 | 10 |
