CSDS-56102_CSDS-56103
基本信息

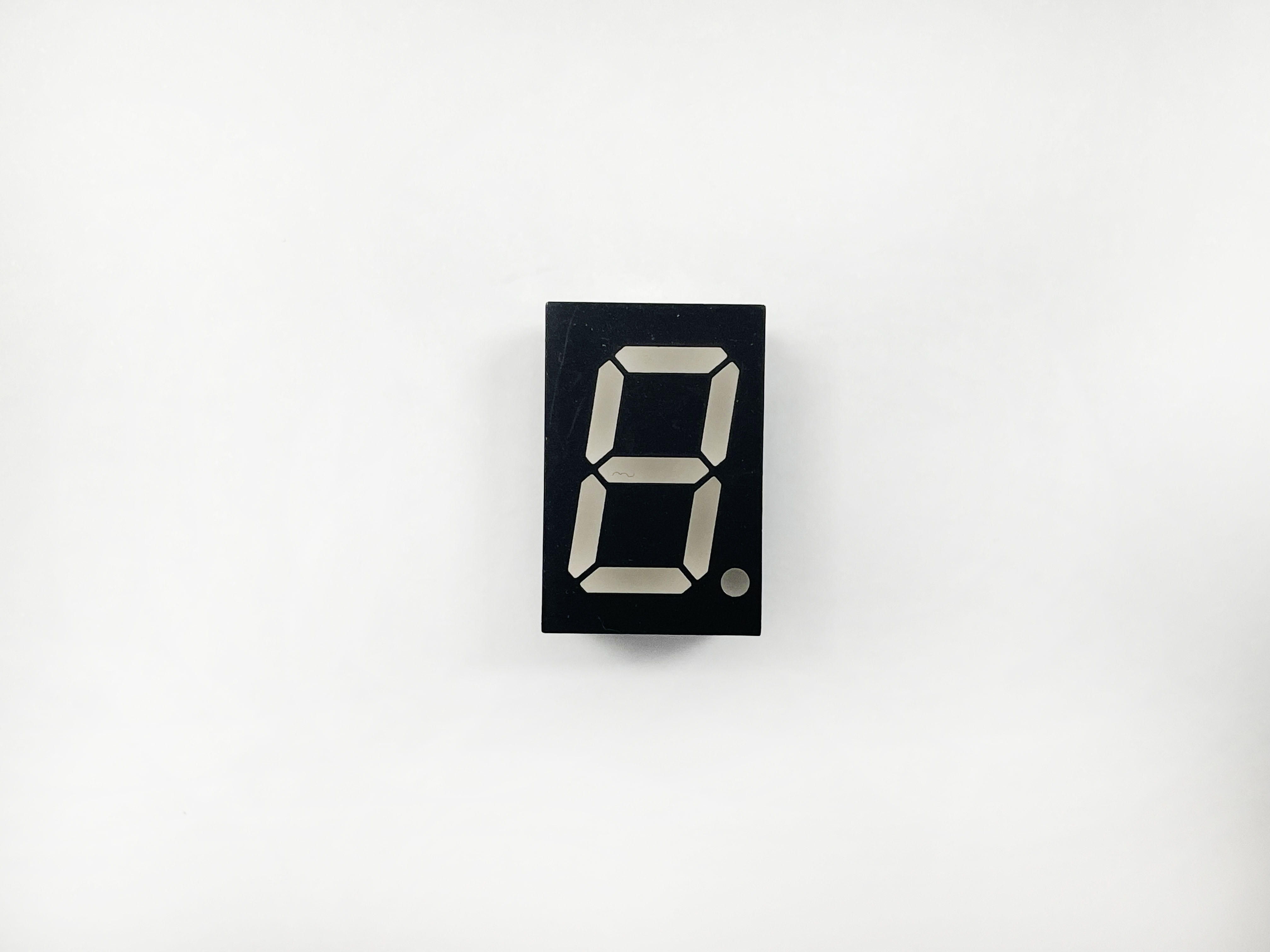

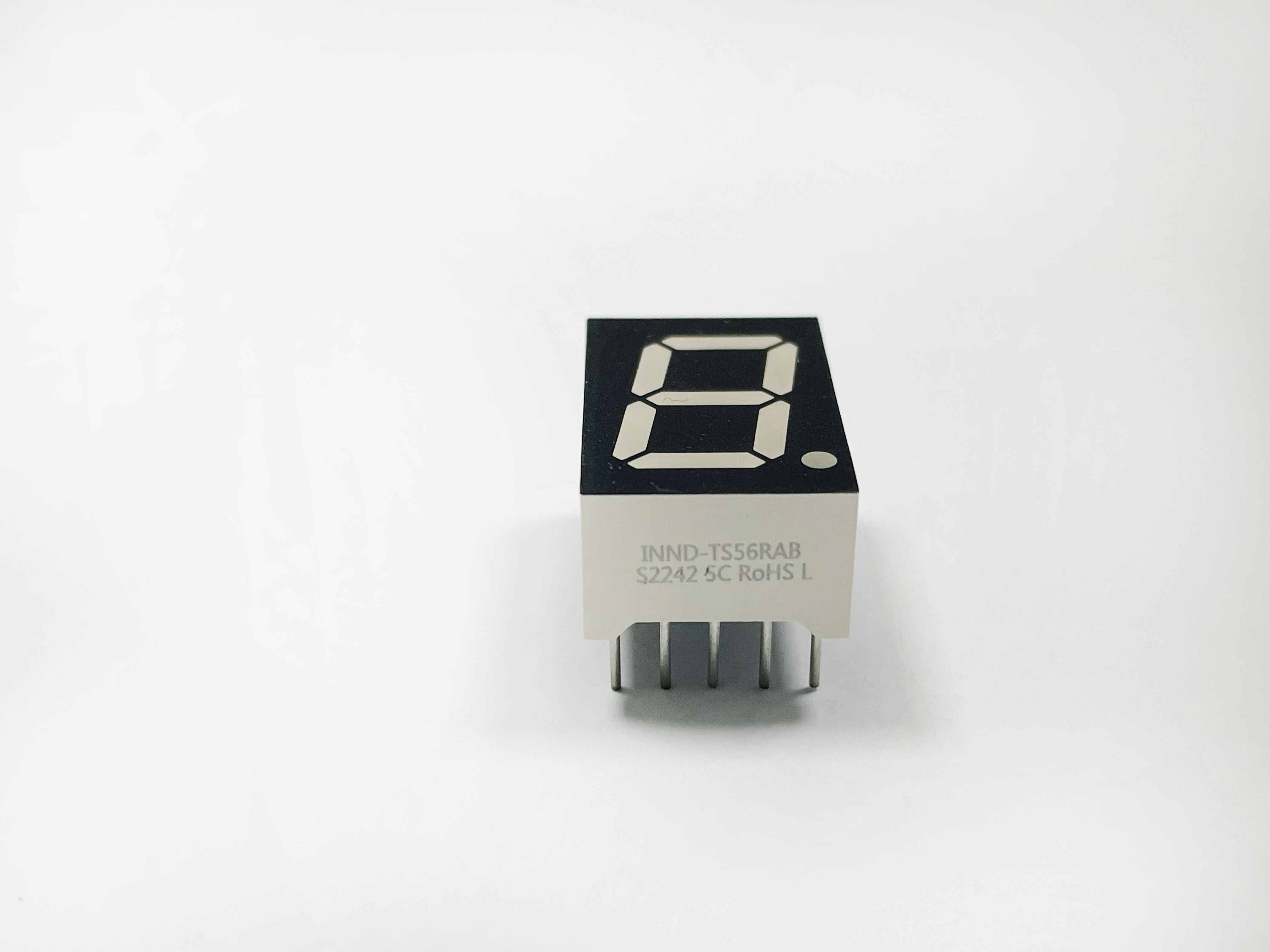

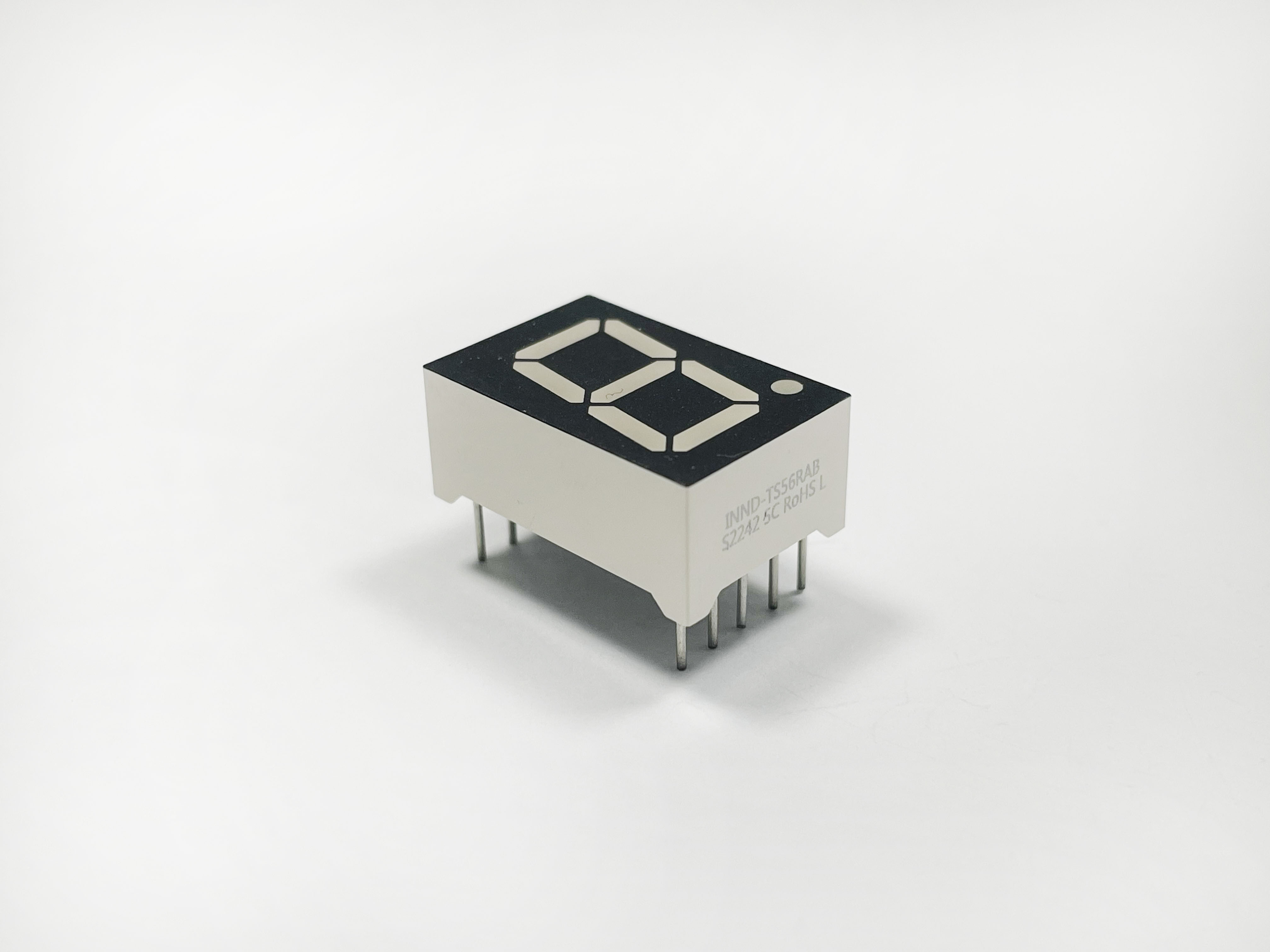

1.Single digit  display .
2.0.56 Inch.
3.Case mold type.
4.Low power consumption.
5.Various color.
特色优点
联系我们
产品规格
Package Outer Dimensions (mm) Color Part Number Dominant Wavelength λd (nm) Luminous Intensity IV (mcd) Forward Current IF (mA)
Common Anode Common Cathode Min. Typ.
0.56 inch 12.6*19*8 Green CSDS-561022 CSDS-561032 525 110 200 10
0.56 inch 12.6*19*8 Green CSDS-56102M CSDS-56103M 570 7 12 10
0.56 inch 12.6*19*8 Yellow CSDS-56102T CSDS-56103T 590 27 50 10
0.56 inch 12.6*19*8 Orange CSDS-56102A CSDS-56103A 605 27 60 10
0.56 inch 12.6*19*8 Red CSDS-56102V CSDS-56103V 625 17 30 10
0.56 inch 12.6*19*8 Red CSDS-56102L CSDS-56103L 630 17 30 10
0.56 inch 12.6*19*8 Red CSDS-56102U CSDS-56103U 645 10 18 10
