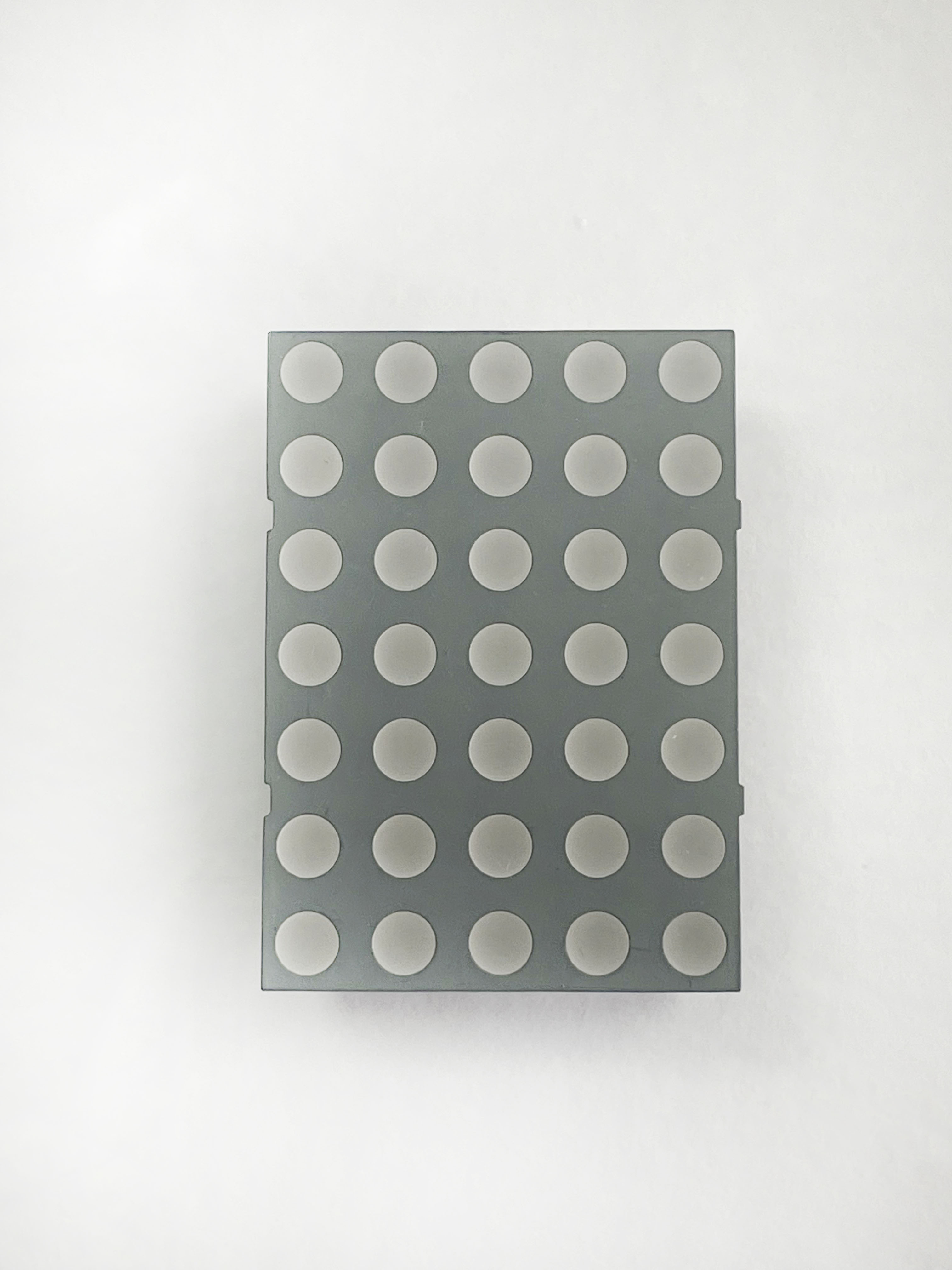

CSDM-57106VM
基本信息
1.1.16 Inch Dot-Matrix Display .
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
2.5*7 Array with X-Y Select.
3.Case mold type.
4.Low power consumption.
5.Two color.
特色优点
产品规格
| Package | Outer Dimensions (mm) | Matrix Height | Dot Diameter, Dot Pitch | Color | Part Number | Dominant Wavelength λd (nm) | Chromaticity Coordinate (x,y) | Luminous Intensity IV (mcd) | Forward Current IF (mA) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Common Anode | Common Cathode | Min. | Typ. | ||||||||
| Dot 5*7 | 22.4*39.1*8 | 30.3mm (1.2 inch) | Ø2.9mm, 4.57mm | Red | CSDM-57106VM | * | 625 | * | 30 | 60 | 10 |
| Dot 5*7 | 22.4*39.1*8 | 30.3mm (1.2 inch) | Ø2.9mm, 4.57mm | Green | CSDM-57106VM | * | 570 | * | 15 | 28 | 10 |
